Electromagnetic absorber

Deutsch: Elektromagnetischer Absorber / Español: Absorbente electromagnético / Português: Absorvedor eletromagnético / Français: Absorbeur électromagnétique / Italiano: Assorbitore elettromagnetico

The electromagnetic absorber is a critical component in the space industry, designed to mitigate unwanted electromagnetic radiation that could interfere with sensitive equipment or communications. These materials and structures are engineered to dissipate or convert electromagnetic energy into heat or other forms, ensuring the reliability of spacecraft systems in harsh environments.

General Description

An electromagnetic absorber is a specialized material or device that reduces the reflection and transmission of electromagnetic waves by converting their energy into thermal energy or other non-reflective forms. In the space industry, these absorbers are essential for protecting electronic systems from electromagnetic interference (EMI) and radio-frequency interference (RFI), which can disrupt operations or damage components.

The design of electromagnetic absorbers typically involves composite materials, such as carbon-loaded foams, ferrite tiles, or metamaterials, which are optimized for specific frequency ranges. These materials are selected based on their ability to absorb energy across a broad spectrum, from radio waves to microwaves and even higher frequencies. The efficiency of an absorber is measured by its reflectivity, transmissivity, and absorptivity, with the goal of minimizing reflection and maximizing absorption.

In spacecraft applications, electromagnetic absorbers are integrated into various subsystems, including antennas, payload bays, and thermal protection systems. They help maintain signal integrity in communication systems, reduce radar cross-sections for stealth applications, and prevent electromagnetic coupling between adjacent components. The performance of these absorbers is often tested under extreme conditions, such as thermal cycling and vacuum exposure, to ensure their reliability in space.

The development of advanced electromagnetic absorbers has been driven by the increasing complexity of space missions, which require higher data rates, more sensitive sensors, and greater resistance to interference. Innovations in nanomaterials and metamaterials have enabled the creation of absorbers that are lighter, more efficient, and capable of operating across wider frequency bands than traditional solutions.

Technical Details

Electromagnetic absorbers function based on the principles of impedance matching and energy dissipation. When an electromagnetic wave encounters an absorber, the material's impedance is designed to closely match that of free space, minimizing reflection. The absorbed energy is then converted into heat through resistive or dielectric losses within the material.

Common types of absorbers include:

Resistive absorbers: These use conductive materials, such as carbon or metal particles, to dissipate electromagnetic energy as heat. They are often employed in broadband applications due to their simplicity and effectiveness.

Dielectric absorbers: These rely on polarizable materials that convert electromagnetic energy into heat through molecular friction. They are typically used in applications requiring low weight and flexibility.

Magnetic absorbers: These utilize ferrite or other magnetic materials to absorb energy through hysteresis losses. They are particularly effective at lower frequencies, such as in the MHz to GHz range.

Metamaterial absorbers: These are engineered structures with sub-wavelength features that can be tuned to absorb specific frequencies with high efficiency. They offer the advantage of being thin and lightweight, making them ideal for space applications where mass and volume are critical constraints.

The performance of an electromagnetic absorber is quantified using parameters such as return loss (measured in decibels, dB), which indicates how much of the incident wave is reflected, and absorption efficiency, which describes the fraction of incident energy that is absorbed. For space applications, absorbers must also meet stringent requirements for thermal stability, outgassing resistance, and mechanical durability to withstand launch and orbital conditions.

Application Area

• Spacecraft Communication Systems: Electromagnetic absorbers are used to reduce interference in antennas and transceivers, ensuring clear and reliable communication between spacecraft and ground stations. They help minimize signal distortion caused by multipath reflections within the spacecraft structure.
• Radar Cross-Section (RCS) Reduction: In military and stealth applications, absorbers are employed to reduce the detectability of spacecraft by radar systems. This is achieved by absorbing incident radar waves rather than reflecting them back to the source.

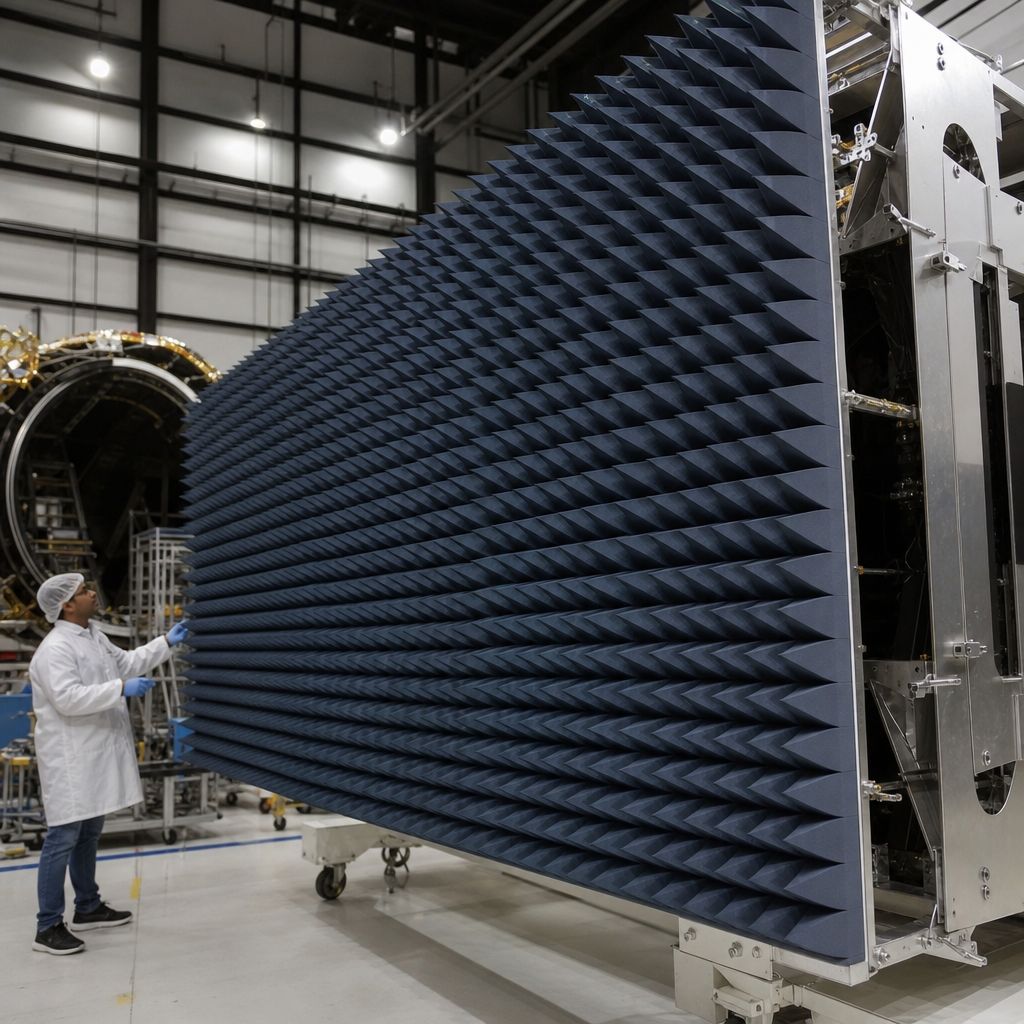

• Electromagnetic Compatibility (EMC) Testing: Absorbers line the walls of anechoic chambers used to test spacecraft components for electromagnetic compatibility. These chambers simulate the infinite free-space environment, allowing engineers to measure EMI and RFI without external interference.
• Thermal Management: Some absorbers are designed to convert electromagnetic energy into heat, which can then be managed by the spacecraft's thermal control system. This is particularly useful in high-power applications where excess energy must be safely dissipated.
• Payload Protection: Sensitive scientific instruments, such as telescopes and sensors, are shielded with absorbers to prevent electromagnetic interference from onboard systems or external sources, such as solar flares or cosmic radiation.

Well Known Examples

• James Webb Space Telescope (JWST): The JWST employs electromagnetic absorbers in its sunshield and instrument bays to minimize stray light and electromagnetic interference, ensuring the precision of its infrared observations (Source: NASA JWST documentation).
• International Space Station (ISS): The ISS uses absorbers in its communication antennas and experimental modules to maintain signal integrity and reduce interference between the numerous onboard systems (Source: ESA technical reports).
• Stealth Satellites: Classified military satellites utilize advanced metamaterial absorbers to reduce their radar cross-section, making them harder to detect and track by adversarial radar systems (Source: Defense Advanced Research Projects Agency, DARPA).
• CubeSats: Many CubeSats integrate lightweight electromagnetic absorbers to protect their compact electronic systems from interference, enabling reliable operation despite their small size and limited power (Source: IEEE Aerospace Conference proceedings).

Risks and Challenges

• Material Degradation: Prolonged exposure to the space environment, including ultraviolet radiation, atomic oxygen, and extreme temperature fluctuations, can degrade absorber materials, reducing their effectiveness over time. This requires the use of durable coatings or protective layers.
• Thermal Management: While absorbers convert electromagnetic energy into heat, excessive heat generation can overwhelm a spacecraft's thermal control system, leading to overheating of critical components. Balancing absorption efficiency with thermal dissipation is a key challenge.
• Weight and Volume Constraints: Space missions impose strict limits on mass and volume, making it difficult to incorporate bulky or heavy absorber materials. This drives the need for lightweight, high-efficiency solutions such as metamaterials.
• Frequency Limitations: Most absorbers are optimized for specific frequency ranges, which may not cover the entire spectrum of potential interference sources. Broadband absorbers are often heavier and less efficient, posing a trade-off in design.
• Integration Complexity: Installing absorbers in complex spacecraft structures without disrupting other systems or adding excessive weight can be challenging. Custom designs and precise placement are often required to achieve optimal performance.

Similar Terms

• Electromagnetic Shielding: Unlike absorbers, which dissipate electromagnetic energy, shielding materials (such as conductive metals or foils) reflect or block electromagnetic waves to prevent them from reaching sensitive components. Shielding is often used in conjunction with absorbers for comprehensive protection.
• Anechoic Chamber: A specialized room lined with electromagnetic absorbers to simulate an environment free of reflections, used for testing the electromagnetic compatibility and performance of spacecraft components.
• Radar-Absorbing Material (RAM): A subset of electromagnetic absorbers specifically designed to reduce the radar cross-section of military platforms, including aircraft, ships, and satellites. RAM often incorporates magnetic and dielectric materials to achieve broad-frequency absorption.
• Metamaterial: An artificially engineered material with properties not found in naturally occurring substances, often used in advanced electromagnetic absorbers to achieve precise control over wave absorption, reflection, and transmission.

Summary

Electromagnetic absorbers play a vital role in the space industry by mitigating interference and protecting sensitive equipment from electromagnetic radiation. Their design and implementation involve a careful balance of material science, electromagnetic theory, and thermal management to meet the demanding conditions of space missions. From communication systems to stealth applications, these absorbers enable the reliable operation of spacecraft in increasingly complex electromagnetic environments.

Advancements in materials, such as metamaterials and nanomaterials, continue to expand the capabilities of electromagnetic absorbers, making them lighter, more efficient, and adaptable to a wider range of frequencies. Despite challenges such as material degradation and thermal management, ongoing research and innovation ensure that absorbers remain a cornerstone of spacecraft design and electromagnetic compatibility.

--
